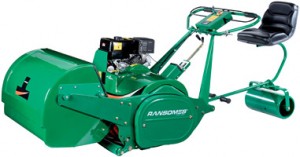

    Ransomes Mastiff Cylinder Mower

    Ransomes Mastiff Cylinder Mower

    Ransomes Mastiff Cylinder Mower



    The Mastiff by Ransomes® is the premier sports surface and pitch heavy duty roller mower producing a distinctive 91cm pristine striped finish. The Mastiff converts to a highly manoeuvrable ride-on machine with various seating options and is powered by a 9hp petrol engine. It also has a huge capacity for collecting clippings and sets the benchmark for stadium mowers.

    • Widest width of cut for higher productivity
    • Better, more consistent cut – day in and day out
    • Optional trailing seat for operator comfort
    • Six and nine blade cylinders provide a choice of cut rates
    • Optional large self-emptying grass box
    Specification
    Engine
    Briggs & Stratton® Vanguard™ 185467 single cylinder, air cooled 4 stroke petrol
    Displacement
    296 cc
    Starting System
    Electric/recoil, 12V system
    Power
    8.7 hp @ 1800 rpm
    Fuel Capacity
    1.74 gal.
    Drive Clutch
    Centrifugal Clutch
    Traction and Cylinder Drive
    Gearbox with forward and half speed reverse to heavy-duty roller
    Rear Drive Roller
    3-piece, ribbed cast iron, 10 in. diameter with machine cut gear differential and expanding shoe brake
    Hand throttle, cylinder drive lever, operator presence control, engine on/off switch, parking brake
    Handles
    Adjustment to top handle
    Length
    85 in.
    Transport Width
    44 in.
    Height
    50 in.
    Weight (inc. grass box)
    771.6 lbs.
    Cutting Cylinder
    6-blade or optional 9-blade, 7.75 in. diameter
    Width of Cut
    36 in.
    Height of Cut
    0.5 in. to 1.38 in.
    Height of Cut Adjustment
    Dual locknut
    Cylinder to Bottom Blade
    Screw adjustment
    Front Roll
    Full width, smooth steel, 3 in. diameter
    Grass Box
    Moulded fibreglass, pivoting box
    Cutting Rate
    26910 sq ft/h
    Cutting Frequency
    20 cuts/ft or 30 cuts/ft
    Ground Pressure
    9.25 psi
    87 dB (A)Leq (2000/14/EC)
    9-blade cylinder, standard grass box, self-emptying grass box, steering seat c/w support frame, trailing seat on iron land rolls, side rolls (for use in place of front roll)
