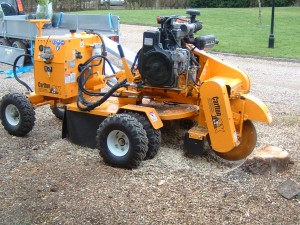

- Carlton 4012 Radio Remote Stump Grinder
Carlton are a manufacturer based in the USA, their headquarters are in Spartanburg, South Carolina.
JP Carlton manufactures a full range of stump grinders from 27-horsepower self-propelled units up to the 250-horsepower Hurricane.
Large Cutter Wheel, 21-inch diameter & 1-inch thick, provides maximum cutting power and flywheel momentum. A Variety of Powerful Engines Feather Touch Hydraulic Controls make the SP4012 easy to operate and provide optimum user control. Tapered Roller Bearings on jack shaft and cutter wheel provide long service life and reduced maintenance. Proprietary Dual Motor Ground Drive eliminates troublesome chains, axles and axle bearings. Optional Dual Wheels are quickly removed.
Various models available, Lombardini and Kubota diesel engines and Briggs and Stratton petrol engined model.
Specifications
Engine options 27 HP Kohler Command Gas
35 HP Briggs-Vanguard Gas
28.7 Lombardini Diesel
Cutter depth below ground 13″
Cutter height above ground 34″
Cutter head swing 40″ arc
Tongue extension 30″
Number of teeth on cutter wheel 20
Cutter wheel diameter with teeth 21″
Cutter wheel thickness 1″ Blanchard ground
Jack shaft bearings 1 7/16″ w/ Kohler
1 11/16″ w/ Briggs-Vanguard or Lombardini
Cutter wheel bearings 1 7/16″ w/ Kohler
1 11/16″ w/ Briggs-Vanguard or Lombardini
Chip containment volume 16 cu. ft.
Fuel tank capacity 10.3 gallons
Hydraulic tank capacity 3.6 gallons
Tire size 8 ply 5.70-4
Machine width 35″
Machine height 46″
Machine length 8′ 6″
Total weight 1550 w/ Kohler
1650 w/ Briggs-Vanguard or Lombardini
Paint Dupont Imron with epoxy Primer
